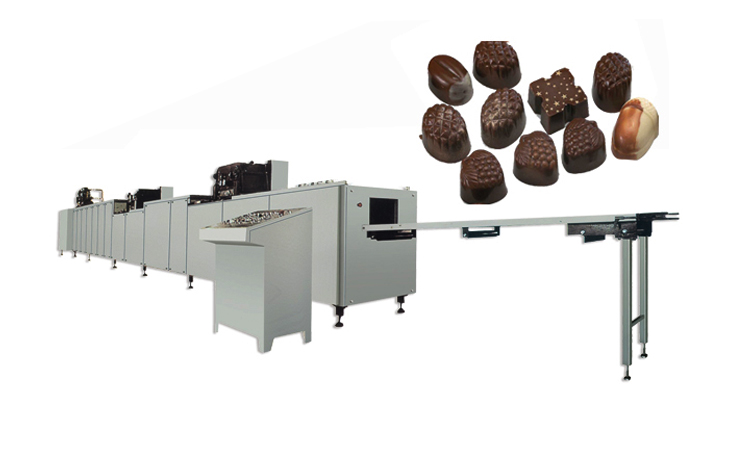

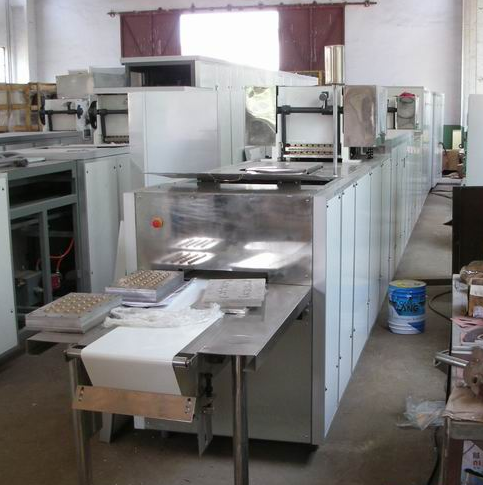

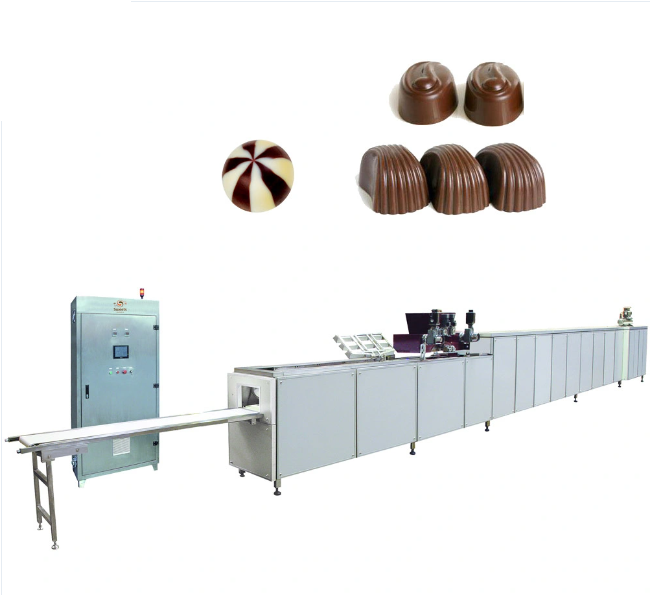

Chocolate Moulding Machine
The automatic chocolate pouring machine is a full-automatic chocolate molding equipment that uses three times of pouring and two times of adding (crushed nuts, whole nuts), integrates baking, pouring, vibrating, conveying, cooling and de-moulding.
Single head pouring machine can produce pure chocolate, sandwich chocolate, double color chocolate, whole nut chocolate, crushed nut chocolate, Weihua chocolate and other products, it can make chocolate of various sizes, the advantage is high output, variety, neatness and practicality.
The standard pouring head can produce chocolate products less than 500g, we can also customize large pouring head less than 1kg to make bulk chocolate.
One shot chocolate machine include follow parts:
Electric mould heater,

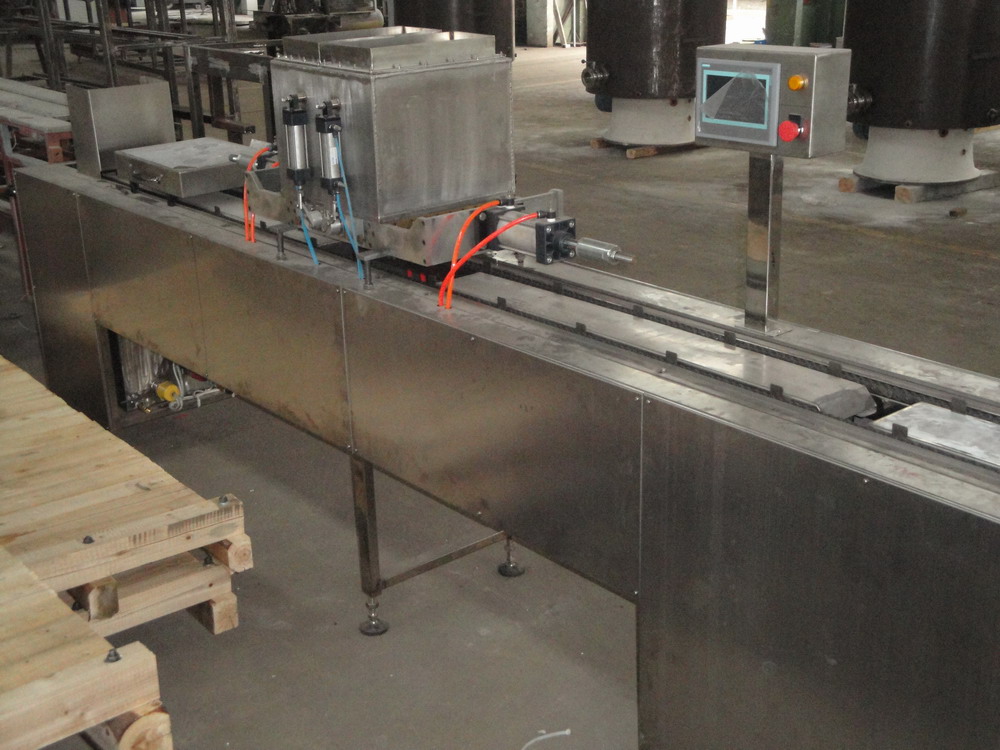

Servo driven one-shot depositor,
Vibrator
Cooling tunnel
Discharging conveyor.
This machine can produce
Plain chocolates,
Chocolates bars
One shot with 70% filled chocolate
two colors chocolate
Advantage of Chocolate moulding line :

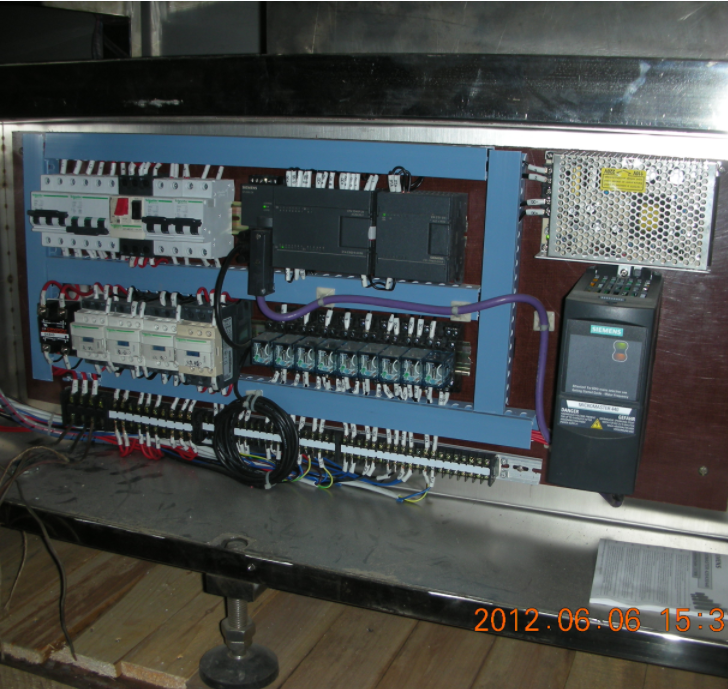

Digital control
Recipe storage
Long distance monitoring
High capacity ,max can reach 25 moulds/min.
Stable running for 7X24HOURS.
Mobile design depositor
Technical Data:
| Models | ME150 | ME175 Two Heads | ME510 Single Head | ME510 Two Heads |
| Production Capacity (Piece of Mould/min) | 6-10 | 6-15 | 6-15 | 6-15 |
| Machine Power (kW) | 6 | 23 | 21 | 25 |
| Number of Mould (Piece) | 200 | 330 | 280 | 330 |
| Mould Size (mm) | 275×275×30 | 330×200×30 | 510×200×30 | 510×200×30 |
| Machine Weight (kg) | 600 | 4500 | 4000 | 5000 |
| Outside Dimension (mm) | 400×520×150 | 16000×1000×1800 | 16000×2000×1600 | 16000×1200×1800 |
ONE SHOT CHOCOLATE MOULDING MACHINE
High-Speed, Precision Molding for Perfect Chocolate Products in a Single Step
Our ONE SHOT CHOCOLATE MOULDING MACHINE revolutionizes chocolate production by combining filling, decorating, and molding in a single automated process. Designed for efficiency and consistency, this advanced machine is ideal for mass-producing chocolate bars, pralines, bonbons, hollow figures, and multi-layered chocolates with intricate designs and premium finishes.
Key Advantages
1. Single-Step Process – Deposits shells, fillings, and backs simultaneously, reducing production time.
2. High Precision – Ensures uniform weight, thickness, and decoration for every piece.
3. Versatile Applications – Compatible with dark, milk, white, and compound chocolates.
4. Minimal Waste – Optimized chocolate flow control reduces excess material usage.
Key Features
1. One-Shot Molding Technology
- Simultaneous Multi-Layer Deposition: Forms shells, centers, and backing in one continuous cycle.
- Adjustable Nozzles: Customize flow rates for different fillings (ganache, caramel, nuts, liqueurs).
- Precision Temperature Control: Maintains optimal chocolate viscosity for flawless molding.
2. High-Speed Automation
- Production Capacity: Up to 5,000 pieces/hour (depending on mold size and complexity).
- Quick Mold Change System: Swap molds in minutes for flexible production runs.
- Integrated Vibration: Eliminates air bubbles for smooth, professional finishes.
3. Smart Control & Customization
- Touchscreen HMI (Human-Machine Interface): Easy programming for recipes, weights, and decoration styles.
- Recipe Memory: Stores settings for different products, enabling fast changeovers.
- Optional Laser Marking: Adds logos, dates, or designs without contact.
4. Optional Add-Ons
- Inline Cooling Tunnel: Rapidly solidifies chocolates for immediate demolding.
- Automated Demolding & Ejection: Reduces manual handling.
- Quality Inspection System: Detects and rejects imperfect products.
Applications
1. Solid & Hollow Chocolates – Bars, Easter eggs, holiday figures.
2. Filled Confections – Pralines, truffles, caramel centers.
3. Multi-Component Chocolates – Layered designs with contrasting colors/flavors.
Why Choose Our Machine?
1. Faster Production – One-shot process cuts cycle times by 30–50% vs. traditional methods.
2. Superior Finish – No seams or uneven layers; ideal for premium brands.
3. Energy Efficient – Reduced power consumption with smart heating/cooling.
4. 24/7 Support – Global service network & remote monitoring available.
