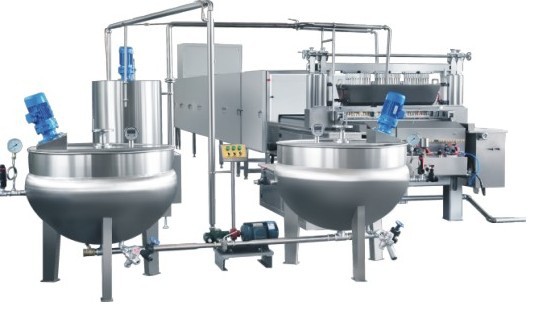

Jelly Gummy Candy Production Line
Automatic Gummy Candy Depositing Production Line, Jelly candy production line.
It can meet the requirements of various shapes and colors. The machine adopts continuous pouring automatic demoulding, forced cooling by fan and other devices. It is an integrated automatic hard candy pouring machine. It can also produce high-quality, multi shape and multi color hard candy and lollipop by changing the mold or pouring head. It has good stability, ensures the quality and output of candy in the long production process, saves manpower and reduces production costs.Suitable for pouring hard candy, spherical lollipop, shaped lollipop, etc. of different shapes.
Technological process:
Sugar melting → sugar storage → sugar boiling → pouring molding → cooling → demoulding → packaging
MAIN TECHNICAL PARAMETERS:
Jelly candy depositing machine is used for making jelly candies, gummy candies. Combined with mechanical, electric and pneumatic.
Structure: the candy machine is driven by servo motors, controlled by 5 axels motion controller. We have one row of moulds, two rows of moulds, three rows of moulds and four rows of moulds jelly candy depositing machine. It includes dissovling pot, storage tank, jelly candy depositing machine with cooling tunnel, conveyor, sugar coating machine, layer colling tunnel.
| Mode | production capacity | power | compressed air | Overall dimension | Weight |
| ME-T150 | 150(Kg/h) | 8kw | 0.2(m3/m) | 8500*1100*1800mm | 3000kg |
| ME-T300 | 300(Kg/h) | 12kw | 0.25(m3/m) | 10000*1600*1800mm | 3500kg |
| ME-T450 | 450(Kg/h) | 16kw | 0.4(m3/m) | 10000*2200*1800mm | 4200kg |
| ME-T600 | 600(Kg/h) | 20kw | 0.45(m3/m) | 10000*2600*1800mm | 5000kg |
- PLC control
- LED touch panel
- Different capacity selection
- The main contact part is stainless steel SUS304
- One set of extra jam paste injection systems for making fruit jam-center-filled candies（optional）
- Automatic steam control system which control stable steam pressure to the cooking
- Different candy shape mould available, we can also make according to clients’ sample.
Why choose us
- Professional food processing and packaging production line intelligent whole case service provider, to provide global food manufacturing customers with processing and packaging production line intelligent system solutions!
- One year warranty service and lifelong maintenance service
- During the warranty period, in case of quality problems, we will provide free maintenance, replacement, installation, commissioning, product installation and commissioning services and training services according to the “three guarantees” principle; After the free warranty period of the product, our company will continue to provide long-term preferential technical services for the product, including technical support, product upgrading, rapid response to failures and technical consultation of relevant personnel; 24-hour real-time service is provided. Users can submit service declarations to the customer service center in different ways. We ensure that users’ problems can be responded to in a timely manner at any time.

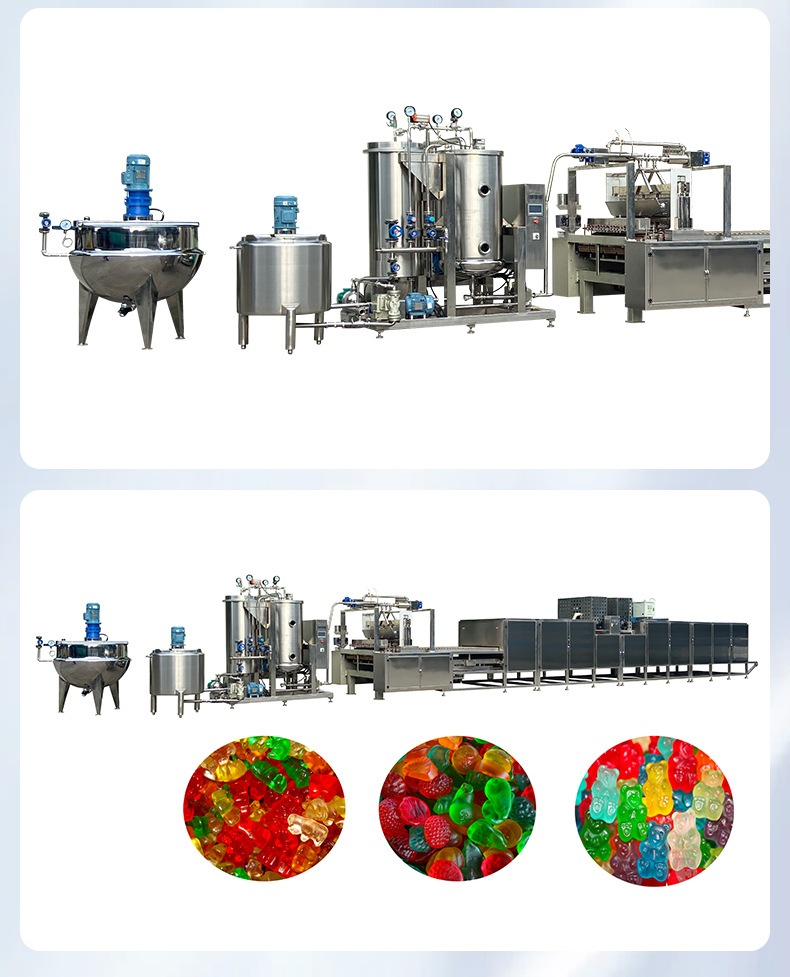

Jelly Gummy Candy Production Line – Turnkey Automated Manufacturing System
Our Jelly Gummy Candy Production Line is a state-of-the-art, fully integrated solution designed for high-volume production of gelatin-based or pectin-based gummy candies in various shapes, sizes, and flavors. This automated line covers every stage from mixing, depositing, drying, polishing, to packaging, ensuring consistent quality, high efficiency (up to 500–1,500 kg/hour), and compliance with international food safety standards. Ideal for startups and large-scale manufacturers alike.
Key Components & Features
1. Automatic Cooking & Mixing System
Precision Cooking Kettles: Steam or electric heating with temperature control (±1°C) for perfect gelatin/pectin melting.
Vacuum Deaeration: Removes air bubbles for smooth, bubble-free gummies.
Automated Ingredient Dosing: Precisely injects flavors, colors, acids, and nutrients.
2. Depositing & Molding Unit
Multi-Nozzle Depositor: High-speed filling into starch or silicone molds (up to 3,000–10,000 pcs/hour).
Custom Mold Options: Supports bears, worms, fruits, rings, and branded shapes.
Starchless Molding (Optional): For reduced waste and easier cleanup.
3. Drying & Curing Tunnel
Multi-Zone Temperature Control: Ensures even drying without cracking or sticking.
Humidity Regulation: Prevents surface hardening for optimal texture.
4. Polishing & Oil Coating
Food-Grade Oil Spray: Adds shine and prevents sticking (coconut, sunflower, or mineral oil).
Tumbling Drum: Ensures even coating for a professional finish.
5. Automated Packaging Section
Flow Wrapping or Bagging: Options for bulk packs or individual retail bags.
Checkweigher & Metal Detector: Ensures compliance with quality standards.
Advantages
✅ End-to-End Automation – Minimizes labor and maximizes output.
✅ Recipe Flexibility – Works with gelatin, pectin, agar-agar, or vegan formulas.
✅ Hygienic & Easy Clean – Smooth surfaces with no dead zones for bacteria.
✅ Energy Efficient – Heat recovery and low-waste design reduce costs.
Applications
Classic gummy bears, worms, and rings.
Functional gummies (vitamins, CBD, collagen).
Sugar-free or organic gummies.
Custom-shaped promotional candies.
Why Choose Our Production Line?
Turnkey Service: From installation to operator training.
Custom Solutions: Adaptable for unique shapes, textures, or packaging.
Global Support: 24/7 technical assistance and spare parts supply.
Launch your gummy candy business with a reliable, high-speed production line!
(Keywords: Gummy candy machine, jelly candy production line, gelatin depositor, automated candy manufacturing, pectin gummy equipment.)
